Forged Hoist Ring (inch)
Technology
- 5 : 1 Safety factor
- Pivots 180°
- Magnetic particle inspected
Technical data

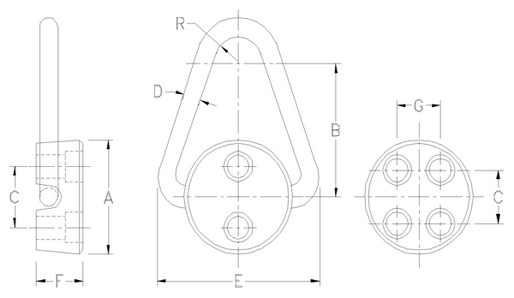

| Number | Rated Load | A | B | C | D | E | F | G | R | Torque | Weight |
Inch Screw x Length (P/N) 별매품 (권장 screw) |
| 68060 | 2,000 lbs | 1 3/4 in | 2 in | 1 in | 5/16 in | 2 1/2 in | 3/4 in | N/A | 1/2 in | 4 - 7 ft-lbs | 0.55 lbs | 5/16"-18 x 1-1/4 (46144-FF) |
| 68070 | 2,500 lbs | 2 1/4 in | 2 1/2 in | 1 1/8 in | 3/8 in | 3 3/16 in | 7/8 in | N/A | 5/8 in | 7 - 10 ft-lbs | 1.25 lbs | 3/8"-16 x 1-1/4 (46146-FF) |
| 68080 | 5,000 lbs | 2 5/8 in | 3 in | 1 1/2 in | 1/2 in | 3 7/8 in | 1 1/8 in | N/A | 3/4 in | 20 - 25 ft-lbs | 2.00 lbs | 1/2"-13 x 2 (46048-FF) |
| 68090 | 12,000 lbs | 3 1/8 in | 4 in | 1 5/8 in | 3/4 in | 5 in | 1 3/8 in | 1 1/4 in | 7/8 in | 20 - 25 ft-lbs | 4.00 lbs | 1/2"-13 x 2-1/2 (46052-FF) |
| 68100 | 20,000 lbs | 3 5/8 in | 5 in | 2 1/16 in | 1 in | 6 13/16 in | 1 7/8 in | 1 1/4 in | 1 in | 30 - 35 ft-lbs | 7.50 lbs | 5/8"-11 x 3 (46043-FF) |
