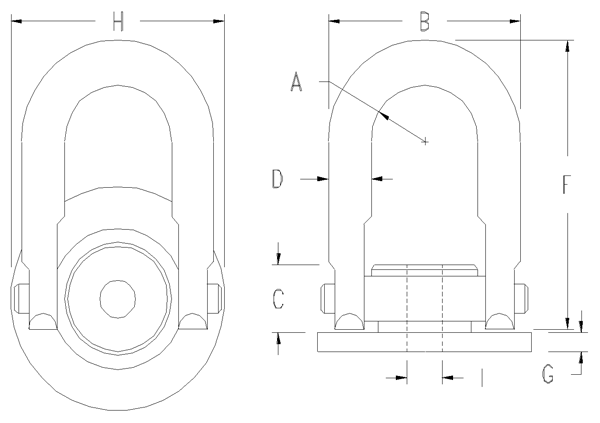

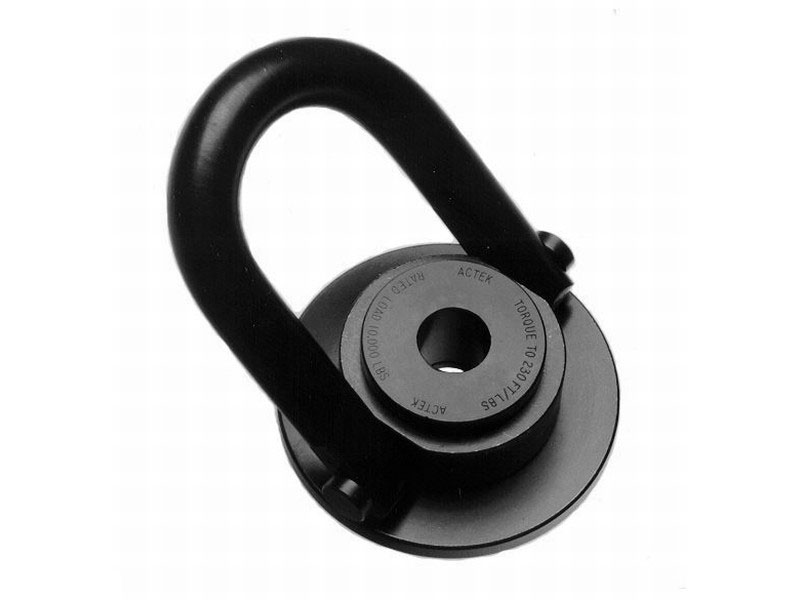

ACTEK Round Base Swivel & Pivot Hoist Ring (meter)



해당 그림을 클릭하면 확대됩니다.

High Strength Alloy screws must be used.
Both UNC and Coil available.

품번

용량

B

A

I

Torque

44924

1,050 kg

3 1/4 in

0.88 in

M12 mm

37 N·m

44930

1,900 kg

3 1/4 in

0.88 in

M16 mm

80 N·m

44936

2,150 kg

3 1/4 in

0.88 in

M20 mm

135 N·m

44942

3,000 kg

4 13/16 in

1.4 in

M20 mm

135 N·m

44944

4,200 kg

4 13/16 in

1.4 in

M24 mm

311 N·m

44956

7,000 kg

6 in

1.75 in

M30 mm

637 N·m

44960

7,000 kg

6 in

1.75 in

M33 mm

937 N·m

44961

7,000 kg

6 in

1.75 in

M36 mm

1085 N·m

44962

10,000 kg

7 11/32 in

2 in

M36 mm

1085 N·m

44966

11,000 kg

8 in

2.25 in

M36 mm

1085 N·m

44968

12,500 kg

8 in

2.25 in

M42 mm

1085 N·m

44980

13,500 kg

8 in

2.25 in

M48 mm

1085 N·m

44924W

1,050 kg

3 1/4 in

0.88 in

Weld-On

N/A

44930W

1,900 kg

3 1/4 in

0.88 in

Weld-On

N/A

44936W

2,150 kg

3 1/4 in

0.88 in

Weld-On

N/A

44942W

3,000 kg

4 13/16 in

1.4 in

Weld-On

N/A

44944W

4,200 kg

4 13/16 in

1.4 in

Weld-On

N/A

44956W

7,000 kg

6 in

1.75 in

Weld-On

N/A

44960W

7,000 kg

6 in

1.75 in

Weld-On

N/A

44961W

7,000 kg

6 in

1.75 in

Weld-On

N/A

44962W

10,000 kg

7 11/32 in

2 in

Weld-On

N/A

44966W

11,000 kg

8 in

2.25 in

Weld-On

N/A

44968W

12,500 kg

8 in

2.25 in

Weld-On

N/A

44980W

13,500 kg

8 in

2.25 in

Weld-On

N/A

inch 타입보기
