Metric Hoist Ring Kit

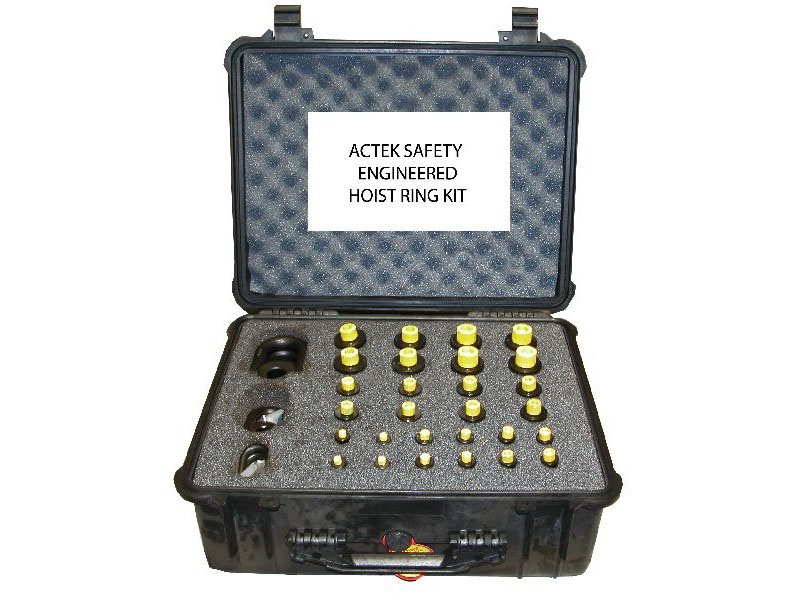

Metric Hoist Ring Kit AK46904
Actek Hoist Rings Kits enable you to custom assemble just the right swivel hoist ring for the job.
Kits are available in standard and metric sizes; and come complete with U-Bar (body and sub-assembly), screws, bushings, washers and E-Rings - enough to configure over 24 different hoist ring sizes and capacities.
A handy accessory kit for lifting and moving heavy loads, and a must for your tool crib.

(Kit includes 4 of each item, Total weight 33kg)

Sub. Assembly

Rated Load (Kg)

Screw

Screw Size

Thread Length

Bushing

Washer

E-Ring





1050

49048

M12 x 1.75 x 50

19

49072

49066

49122

46020

3/4" U-BAR

1900

49056

M16 x 2.00 x 60

29

49028

49026

46034





2150

49054

M20 x 2.50 x 65

34

49074

49068

46038





3000

49244

M20 x 2.50 x 75

32

49272

49266

46038

46220

1" U-BAR

4200

49250

M24 x 3.00 x 80

37

49274

49268

46238





4200

49242

M30 x 3.50 x 100

38

49228

49226

46834

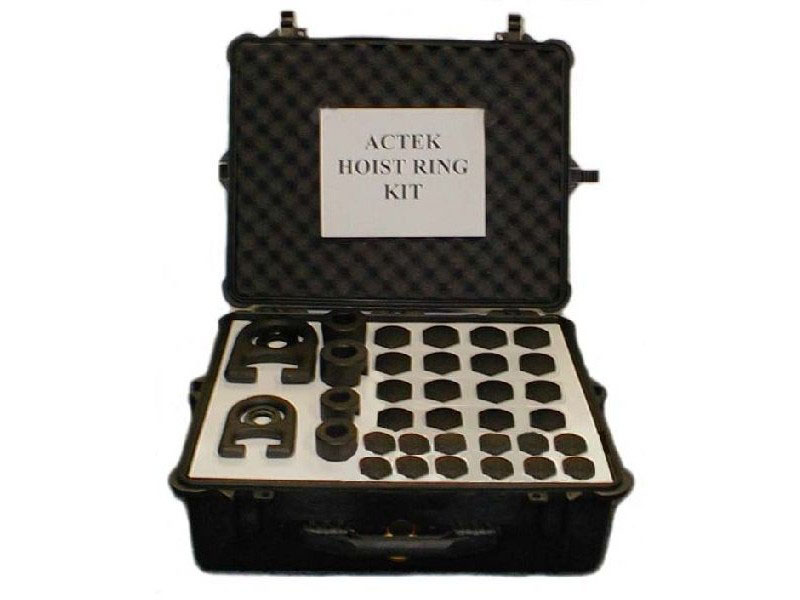

Forged Metric Hoist Ring Kit
Actek Forged Swivel Hoist Rings Kits enable you to custom assemble just the right swivel hoist ring for the job.
Kits are available in standard and metric sizes; and come complete with U-Bar (body and sub-assembly), screws, bushings, washers and E-rings - enough to configure 20-24 different hoist ring sizes and capacities.
A handy accessory kit for lifting and moving heavy loads, and a must for your tool crib.

  • Kit includes 4 of each item, Total weight 39 kg


    (Kit includes 4 of each item, Total weight 39kg)

    Sub. Assembly Rated Load (Kg) Screw Screw Size Thread Length Body Washer Base E-Ring
        1050 54048 M12 x 1.75 25 56030 56068 49122
    56020 3/4" U-BAR 1900 54056 M16 x 2.00 25 56030 56068 46034
        2150 54054 M20 x 2.50 25 56030 56068 46038
        3000 54244 M20 x 2.50 30 56230 56268 46038
    56220 1" U-BAR 4200 54252 M24 x 3.00 30 56230 56268 46238
        4200 54243 M30 x 3.50 40 56230 56268 46834
