WOH Hoist Rings
Technology
- 4:1 safety factor
- weld on design
- for excavator, fork lift, load arms
Technical data
| part |
Type |
Rated Load |

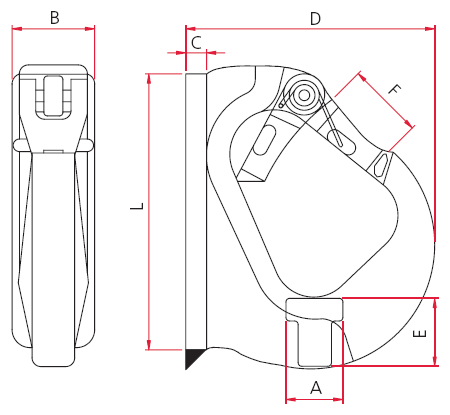

dimensions ( mm ) | weight ( kg ) | |||||||||
| LxB (mm) | A | C | D | E | F | ||||||||
|
68060 |
HR 900 |
900 |
M8x30 | 44 | 51 | 25 | 8 | 63 | 19 | - | 13 | 9 | 0,33 |
|
68070 |
HR 1100 |
1.100 |
M10x35 | 57 | 63 | 28 | 10 | 81 | 22 | - | 16 | 16 | 0,56 |
|
68080 |
HR 2250 |
2.250 |
M12x50 | 66 | 76 | 38 | 13 | 98 | 28 | - | 19 | 37 | 0,90 |
|
68090 |
HR 5400 |
5.400 |
M12x50 | 79 | 101 | 41 | 19 | 130 | 35 | 32 | 22 | 37 | 1,80 |
|
68100 |
HR 9000 |
9.000 |
M16x60 | 91 | 127 | 52 | 25 | 162 | 48 | 32 | 25 | 80 | 3,38 |
